Back from the edge.

Posted on by
Reply

So much work, so little time sums up my (and i suspect the rest of the class of 10/11) Christmas.

Pin up on Monday was a strange affair as everybody looked so pale and bloodshot, alas not from a night on the town. I think the ‘Blitz Spirit’ is alive and well in our group as we all can empathise with others long dark nights of the soul, when that blank sheet of paper mocks your every stroke of the pen.

So what i pinned up for the first crit, of the year. We have a week to update and final marked crit on the 24th of January. As usual the crit normally states what is at the back of your mind or what you were trying ‘wing’. Plus some surprises.

(click on pics to enlarge)

                                                     Park Life

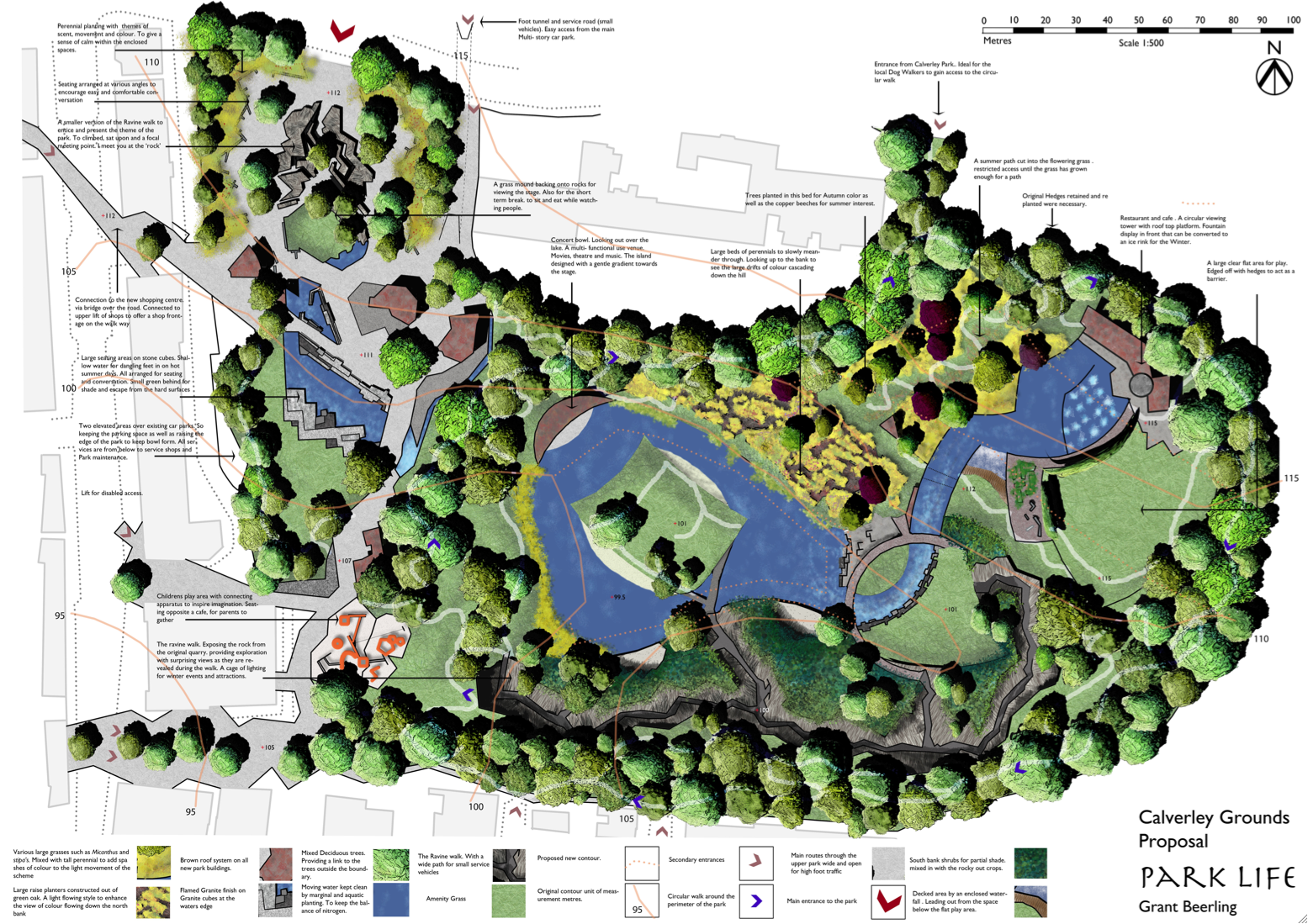

The Masterplan



My Aim: I was trying to convey the topography of the site with shades of green. Tried loads of new ideas and techniques. Overall pleased with the strong but tonally dark colour scheme. Not so happy about the water, general cramped feel, paving colour, outside buildings. The name feels right as it conveys (in my opinion) that people are the park, as in the Blur song ,park life. Simple, catchy and with an element of humour, which adds up to a memorable title, i hope.
Crit : Too much writing, smaller more descriptive to the point annotation  and thus more of them. Trees too small, line weights generally to heavy, little or no hierarchy in the line weight, Loads more definative shadow, Outside buildings greyed out, buildings defined, generally more obvious and less suble communication.
Cross Sections

1:100
Aim: Trying to get atmosphere in the area. The calm feel of the grasses along with the enclosure of the planters. Depth of field.
Crit: Line weight of the ground level too thick. Shorter and more concise annotation, more of it. Use the whole with of the page, otherwise wasted opportunity.

Aim: To show the vallies and different shrub/tree planting on bank. to get depth to the other side of the park.
Crit: As Above
1:50
Aim: Depth and water and sitting possiabiltys on the granite cubes. Not so pleased with this as it lacks fun and atmoshere, which is the point
Crit: As above
Aim: To show a small crowd enjoying an event. Stones being used. Depth of field. Really hard to get people sitting on the ground looking at you of the net.
Crit : As above.
Sequential Sketches on the main circular route.



Aim: Really rushed, all 6 in 6 hours. Some of the perspective are way out as they were all out of my head. The tree’s in the for ground are naff, though in the distance are ok. Though the drawings are average at best there is some atmosphere.
Crit: Line weight! way to heavy, lolly pop tree’s and people. no variation or possible id of different tree species. Colour, shadows the list goes on!!
Conclusion, Need to sharpen self crit skills to see what is actually in front of me.More sketching less photoshop filters. I think i need to just nail some issues such as grass and mass area’s for colour and feel. Atomsphere rather than to much technique.
                                        Think Atmoshere

The Choice

Posted on by
Reply

Well after an intense crit ,’the panel’ decided on Alternative. I wanted to do Connection.  The issues with connection are the shadow the ‘flyover’ creates. Also maybe too much dominance of the axis on the space.
The attraction of alternative was due to the valley idea, as well as maybe the general setting out. Though the large circular area’s of grass where not appreciated, which on reflection i can see that there is not enough difference in the sizes as well as maybe a bit strong on the basic geometric shape.

Thanks to all who made comments, 5 for Connective, 1 for Education and 1 for Alternative.

Sketch Designs

Posted on by
7

What a diverse bunch we are, from extreme wow ,noisy, party, to calm considered and conservative. I noticed that nearly all of us had a phrase  that our favoured design seem to spring from, even if we did not know it before presenting. You have to go with your own personality and how you see the world to get passion, otherwise its just ‘another job’. There was plenty of passion yesterday.

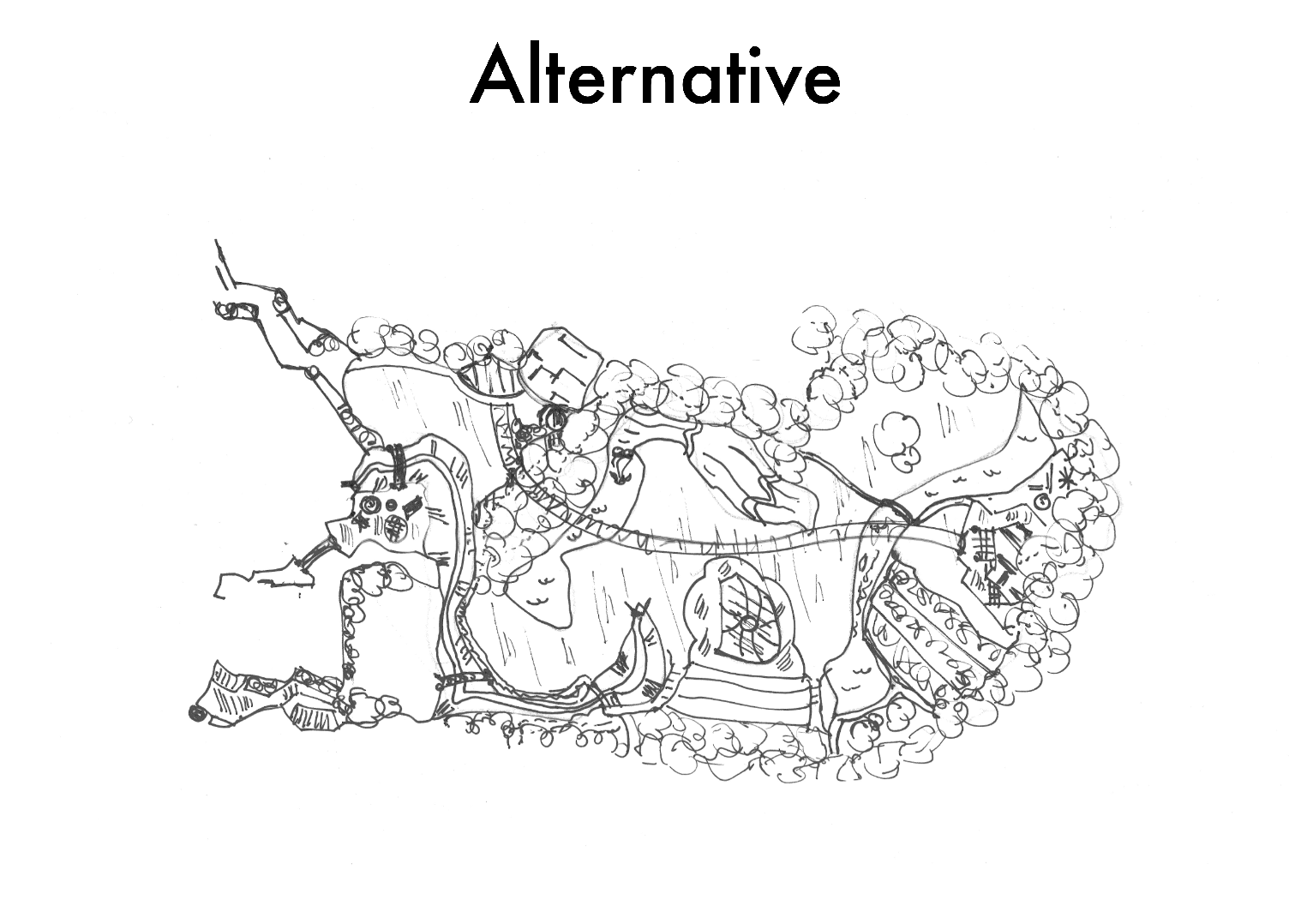

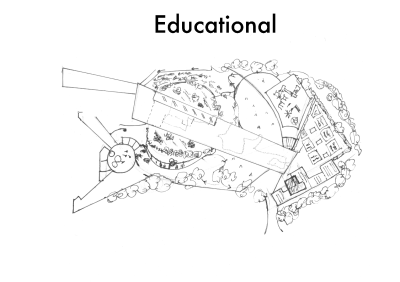

I will not tell you which one was chosen to develop yet, so that if any viewers would like to comment then there is no bias. An initial idea sketch followed by a more detailed sketch. The three words they are inspired by are Connective, Educational and Alternative.

Click on image to enlarge.

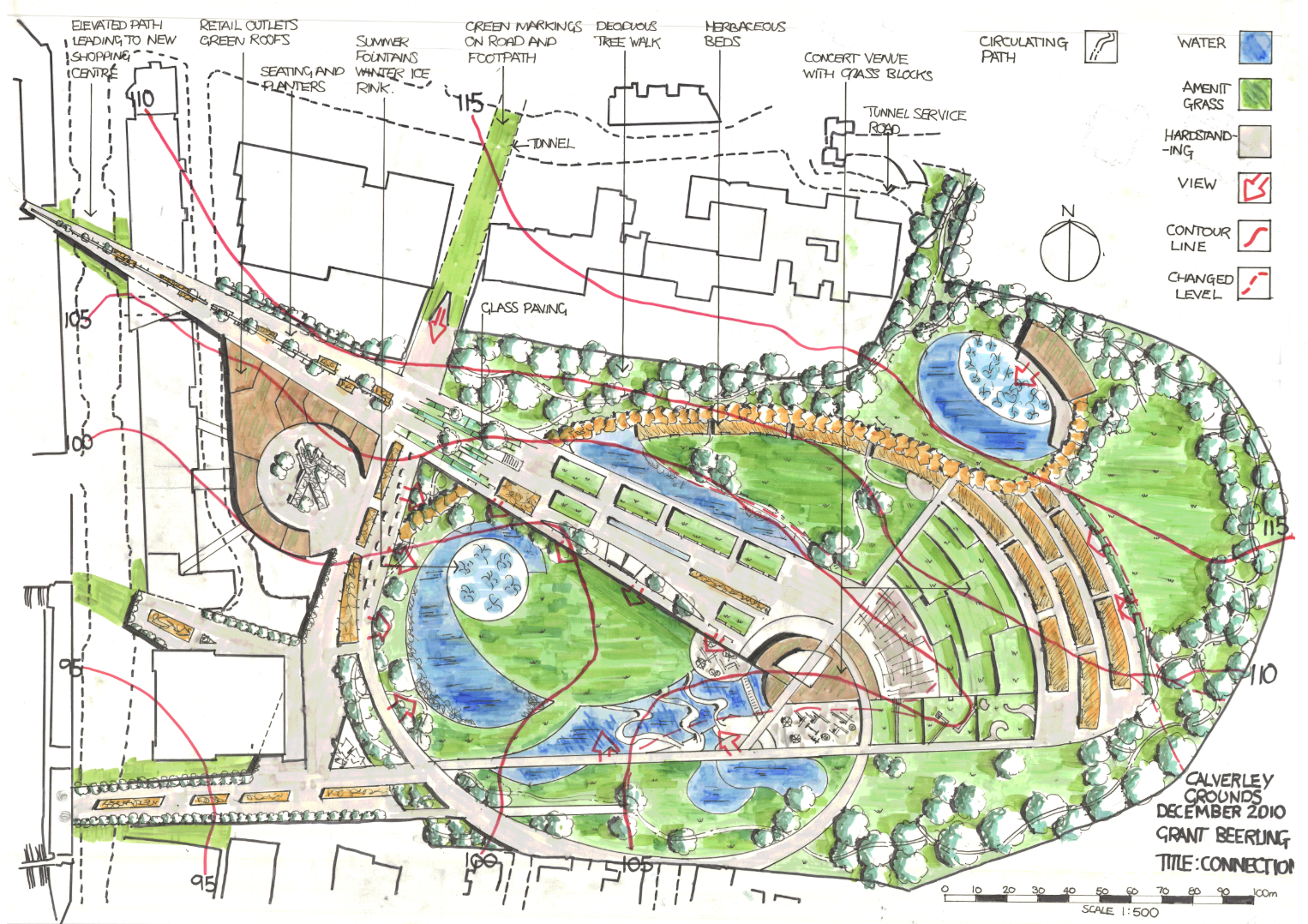

The big idea is to re-connect Tunbridge wells with the Park (known as the grounds really needs to changed as it congers up the wrong picture as one thinks of sport, not leisure). So when some one says Tunbridge Wells they would think Calverley Park. Connect with people and their every day life, whether using its direct routes as a more pleasant walk from one end of town to another or stopping for a cup of coffee and a rest whilst admiring the views, promising to come back another day to explore further. Connect Business so that they have a vested interest in the park staying well maintained (through Business rates). Concert venue, water and ice, fantastic planting scheme, restaurants, circular walk/run, all designed to pull visitors and regulars into the park. It should be part of the day when in Tunbridge Wells.

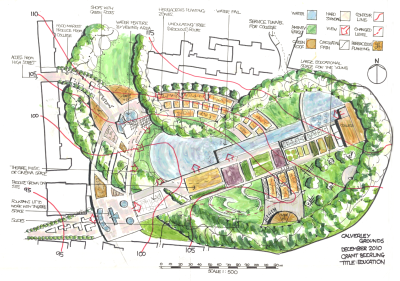

Education about food. Local schools, colleges and higher education, to use the facilities and be hand on. Local markets to sell produce on the site. All the cafe’s and restaurants to have a theme of fresh produce, cooked on site (no boil in the bag) and reasonable pricing to show good food does not have to be expensive. Large play area with bespoke designed equipment for the process of education through play. Circular walks of woodland and amazing planting.
Simular themes of connection and leisure incorporated in the design. User groups to have a say in the running of the park, so to attain adoption from the start.

An alternative experience of the landscape. Using the topography to our advantage, rather than being frightened of the challenges it throws up. Cutting into the landscape creating a valley with high sides, making and enclosure. The navigation is not obvious and is rewarded with surprise views of the park plus some enclosed viewing points over the lake. A contrast is the large grassed area’s, very formal for play and relaxation. A concert stage cut into the hill looking over the lake (facing S/E). On the south facing side superb planting schemes to draw people in for a more meandering walk, exploring scent, colour and texture.
Upper area restaurant with fountains and ice rink in the winter. Water fall working its way down to the lake. Circular walk for the dog walkers and runners. Adoption as above encouraged.
So there we  have it, three big idea’s, one choice. Your thoughts would be gratefully received. Still more development needed but its a start.
